Air ride suspension systems were once limited to high-end luxury vehicles and specialty applications. Today, they’re increasingly common across passenger cars, SUVs, performance vehicles, and EV platforms. As adoption has grown, so has the number of ride-height complaints, warning lights, and repeat failures entering repair bays.
The challenge?
Air ride systems are no longer just mechanical suspensions — they are fully integrated electronic systems. Diagnosing them requires a different mindset, a structured process, and a clear understanding of how mechanical, electrical, and software elements work together.
Why Passenger Car Air Ride Is Often Misdiagnosed
Many air ride failures present with familiar symptoms:
- Vehicle sagging overnight
- Uneven ride height
- Compressor running excessively
- Suspension warning lights
- Intermittent ride height changes
What makes air ride challenging is that the visible symptom is rarely the root cause.
A leaking air spring may be obvious — but replacing it without addressing calibration, compressor stress, or control logic often leads to repeat failures. Likewise, a failed compressor is frequently a result of an unresolved leak or sensor issue, not the original problem.
Modern air ride diagnosis isn’t about chasing symptoms. It’s about understanding what the system is trying to do — and why it can’t do it.
Understanding the Modern Air Ride System
A passenger car air ride system typically includes:
- Air springs or air struts
- Compressor and dryer assembly
- Air lines and valves
- Ride height sensors
- Suspension control module
- Communication with ABS, ESC, and drive mode systems
These components work together in real time to maintain ride height based on vehicle load, speed, drive mode, and safety inputs. When one part of the system reports unexpected data, the control module may limit operation or disable functions altogether.
That’s why air ride diagnosis today must be system-level, not component-level.
How Passenger Car Air Ride Systems Are Diagnosed Today
Unlike traditional suspension systems, air ride systems cannot be properly diagnosed without scan tool access.
The first step is establishing communication with the suspension control module to:
- Read fault codes
- Identify inhibited functions
- Confirm system status (active, limited, or disabled)
A suspension warning light may not mean a mechanical failure — it may indicate the system has detected implausible sensor data, excessive compressor run time, or a calibration error.
Modern diagnosis relies heavily on live data, including:
- Ride height sensor values
- Compressor duty cycle
- System pressure readings
- Temperature or time-based fault logic
Live data allows technicians to see how the system behaves under load, during key-on events, or after extended parking — conditions where many air ride complaints occur.
This is where tools like ZF MultiScan play a supporting role by giving technicians visibility into what the system is seeing and how it’s responding.
Air ride fault codes often describe conditions, not failed components.
Examples:
- Compressor performance codes caused by leaks
- Height sensor plausibility faults caused by calibration issues
- Valve or pressure faults triggered by software protection strategies
Effective diagnosis requires interpreting these codes in context — not defaulting to parts replacement.
One of the most common air ride mistakes is skipping calibration after repairs.
Any time air springs, sensors, control modules, or related components are replaced, the system must be recalibrated. Without proper calibration:
- Ride height may appear correct but be electronically incorrect
- Compressors may overwork
- Fault codes may return without obvious cause
Calibration is not optional in modern air ride service — it’s a required diagnostic step.
Diagnosis doesn’t end when the warning light goes out.
Post-repair validation includes:
- Clearing fault codes
- Verifying normal compressor behavior
- Confirming consistent ride height over time
- Ensuring no secondary systems are affected
Because air ride interacts with stability control and drive modes, improper repairs can create broader vehicle safety issues.
Common Air Ride Diagnostic Mistakes
Technicians most often run into trouble when:
- Compressors are replaced without fixing leaks
- Ride height sensors are replaced without calibration
- Electrical faults are mistaken for mechanical failures
- “No fault codes” is interpreted as “no problem”
Avoiding these pitfalls requires both diagnostic capability and system knowledge.
Why Training Matters in Modern Air Ride Repair
As air ride systems become more common, vehicle-specific procedures and system logic vary widely. Technicians can’t rely on assumptions or past experiences alone.
Technical Training Programs like ZF [pro]Tech focus on:
- How air ride systems function as a complete system
- Proper diagnostic workflows
- Understanding interactions with braking and safety systems
- Applying diagnostics confidently in real-world service environments
Training doesn’t replace tools — it makes them effective. View 2026 training schedule.
Mastery Creates Opportunity
Shops that master air ride diagnostics gain:
- Faster, more accurate repairs
- Fewer comebacks
- Higher-value service capabilities
- Greater technician confidence
Passenger car air ride systems aren’t going away. They’re becoming standard. The shops that understand how to diagnose them today will be best positioned for what comes next.

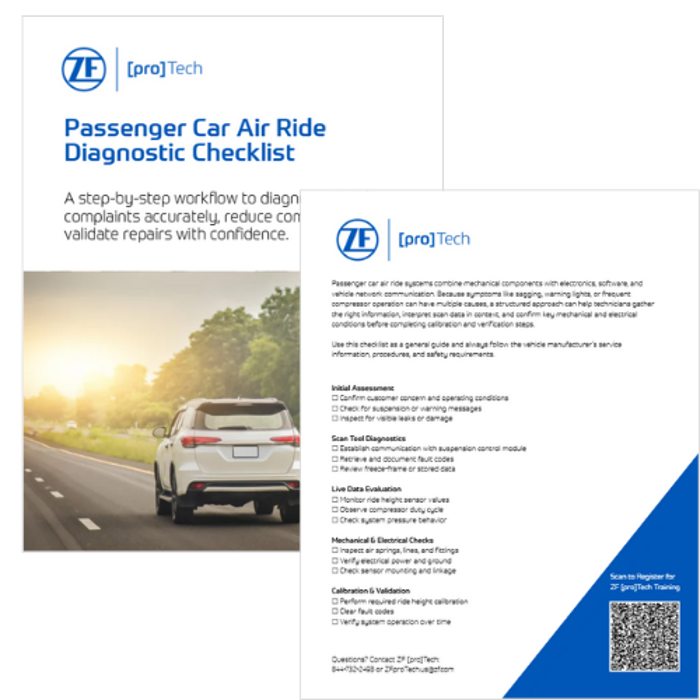

Passenger Car Air Ride Diagnostic Checklist (Download)
Want a printable version you can use at the bench? The Passenger Car Air Ride Diagnostic Checklist is available as a PDF download for ZF [pro]Tech members.
Register for ZF [pro]Tech to download the checklist and access additional technical training resources. Always follow the vehicle manufacturer’s service information, procedures, and safety requirements.
