Transforming the view across your rail fleet
In an ever-changing landscape, you need to be ahead of the game. Predicting what's around the corner and planning for it gives you a definite competitive advantage. Because our cutting-edge technologies power them, ZF Aftermarket's Advanced Condition Monitoring solutions offer real-time insights into the health and performance of your rail assets. Allowing you to make more informed decisions and optimize fleet performance.
Solution
GEARBOX HEALTH MONITORING
Your gearbox condition monitoring tool – always informed
Monitoring a train's gearbox is crucial for efficient maintenance as it enables early detection of wear or faults, preventing costly failures and ensuring optimal performance and safety.

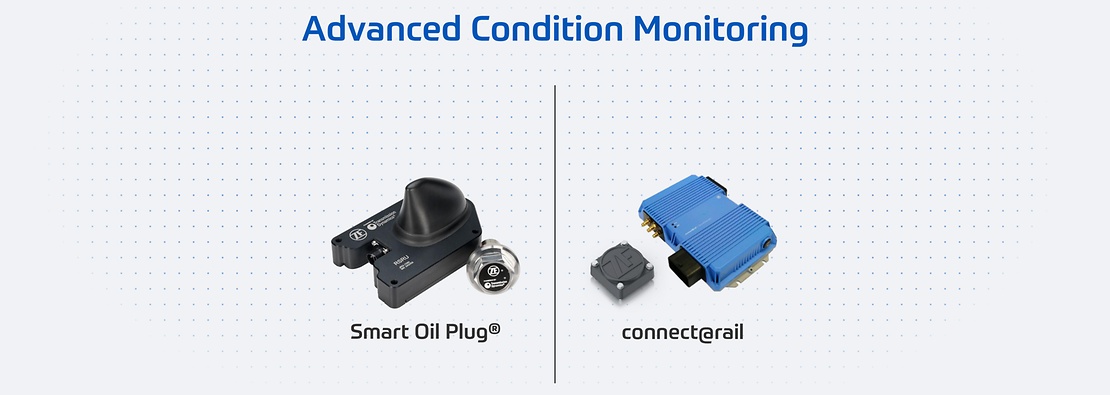

Remotely measuring vibration, temperature and oil debris the Smart Oil Plug® gives you valuable insights to your fleet's condition.
The Smart Oil Plug® meets the demand to provide real-time, wireless gearbox condition monitoring to transform maintenance practices. The on-board transceiver and plug can be seamlessly adapted to any rail application.
Together with Transmission Dynamics we provide holistic support to assist enhancing the reliability of your fleet.
The data is collected and visualised within your personal online data dashboard, providing you with valuable insights into your fleet health.
With this data you can address issues before failure, enabling preventative maintenance.
HARDWARE & INSTALLATION
The control unit’s transceiver contains a SIM card for GSM data communication and the Smart Oil Plug® uses Bluetooth BLE 4.2 to transmit data to the transceiver. Each Smart Oil Plug® version is custom-designed to replace the original oil plug – same fit, same form, same function.
Our hardware is tested and EMC accredited (environmental, shock and vibration).
1. Transceiver per bogie (x1)
The transceiver is connected to the Smart Oil Plug® via Bluetooth. An installation bracket is developed for fitment to the vehicle and it can be mounted to the bogie or vehicle.
2. Smart Oil Plug® per bogie (x1)

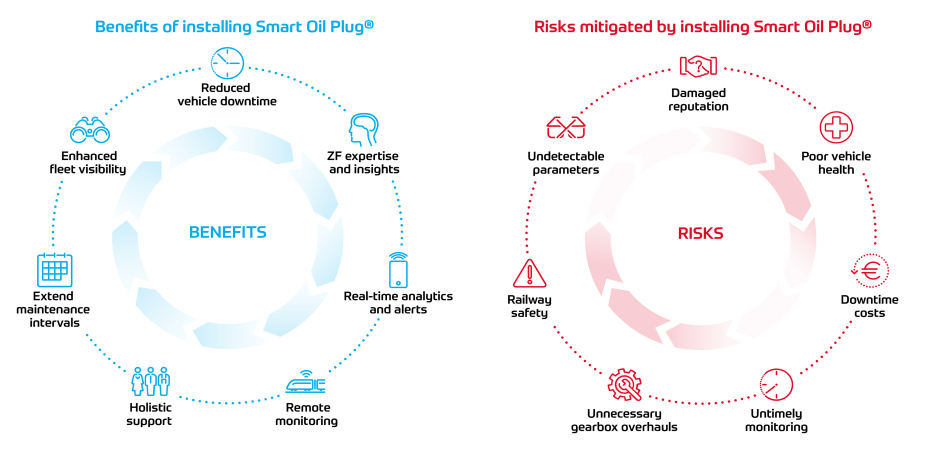

Advantages
- Enables fleet health analytics to easily identify issues on a larger scale and target troubleshooting
- Simple and flexible installation – just replace the original oil plug by the Smart Oil Plug® with the same fit, form and function
This is what our customers say:
"The Smart Plug units have proven to be very robust under all operational conditions. The plugs have been able to provide accurate changes in oil temperature, which then alerts our engineering team to take any required course of action in a timely manner.
Being able to monitor an increase of particles in the oil has been very beneficial in detecting units with concern, and allowing us to take appropriate action to prevent any potential unit failures. (...) Access to the portal for monitoring live data has been easy to navigate and all the variables can be seen for each individual final drive."
Carl Bentley
Overhaul Manager CAF UK & Ireland
Product Data Sheet
Our informative data sheet tells you all you need to know about Smart Oil Plug® operation, analysis, testing and more.
WHEEL AND TRACK MONITORING
Keeping trains safe on track with our monitoring solutions
Monitoring your fleet's infrastructure and driveline is essential for train safety. Saving time and resources, our connect@rail solution now allows you to do this remotely. A host of intelligent products & services – from the Heavy Duty Tag to the VCU Pro Onboard Unit for data gathering, through to a personalized dashboard for data visualization – all means you can provide a safer, more efficient journey.
When it comes to the track, you can proactively address defects, which reduces operational disruption and prolongs the lifespan of the infrastructure. Of equal importance, remote monitoring of the wheel minimizes wear, which in turn prevents costly disruptions and optimizes performance.
DISCOVER OUR COMPONENTS
Precise monitoring with connect@rail
With our connect@rail solution we provide a broad range of products and services to remotely monitor your fleet's infrastructure and driveline, including the Heavy Duty Tag, the VCU Pro Onboard Unit for data gathering and your personalised dashboard for data visualisation. Providing you with all of the relevant information at your fingertips.
The Heavy Duty Tag
The robust Heavy Duty Tag provides a comprehensive and reliable recording of condition data. Different, intelligent modes enable optimal measurement results as well as maximum energy efficiency.
Benefits
- Modular system of HD TAGs, Gateway and specific software packages, enables customised solutions for every application
- Wireless Bluetooth sensor for easy integration into existing systems
- Early insights regarding wear and damage
The VCU Pro Onboard Unit
To securely acquire and process the sensor data the VCU Pro Onboard Unit contains two independent processors, four CAN interfaces, four analog input and four digital output ports. It supports Bluetooth, wireless network and all common GNSS.
Benefits
- Easy and fast integration into existing vehicles
- Stable and secure connection to the ZF IoT Cloud
- Highly flexible data logging tool with possibility to change modes according to the current need
- Together with the Heavy Duty TAG, the VCU Pro Onboard Unit enables an individually tailored monitoring system for any application
One system, countless possibilities
- Continuous monitoring of the wheel and rail track for defect conditions by recording statistical acceleration data
- Intelligent condition monitoring of driveline, chassis and bogie components
- Measuring equipment in regular vehicles (no special, expensive measuring vehicle required)
- Exact localisation via GPS
- Customised solutions – features can be added and adjusted individually
You want to read more
Find an overview on the advantages of connect@rail within our information leaflet.
Contact
Interested? Let's talk!
You want to discuss, how Advanced Condition Monitoring by ZF Aftermarket can transform your rail fleet management?
